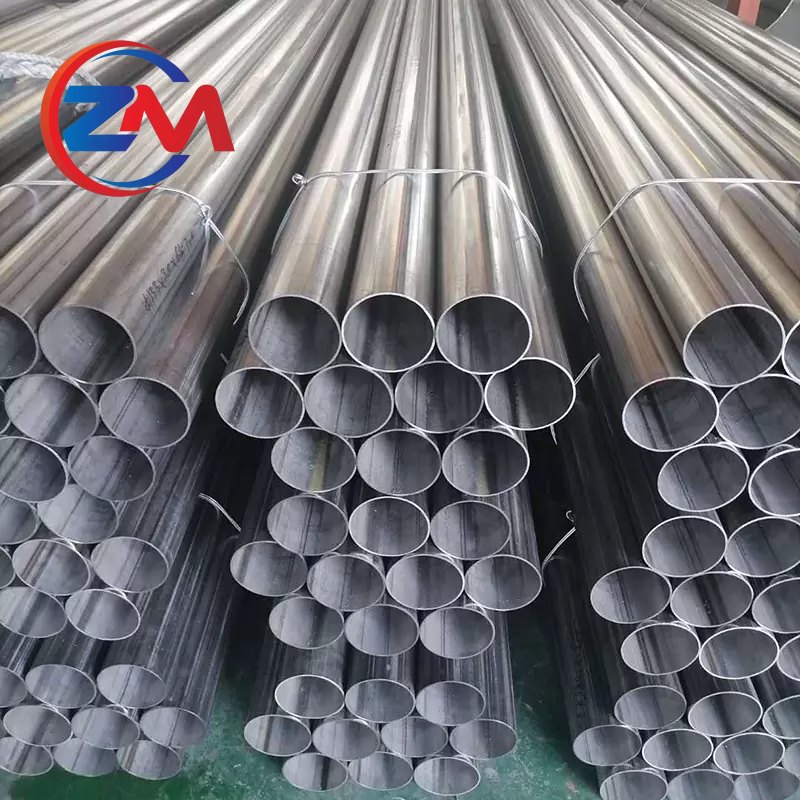

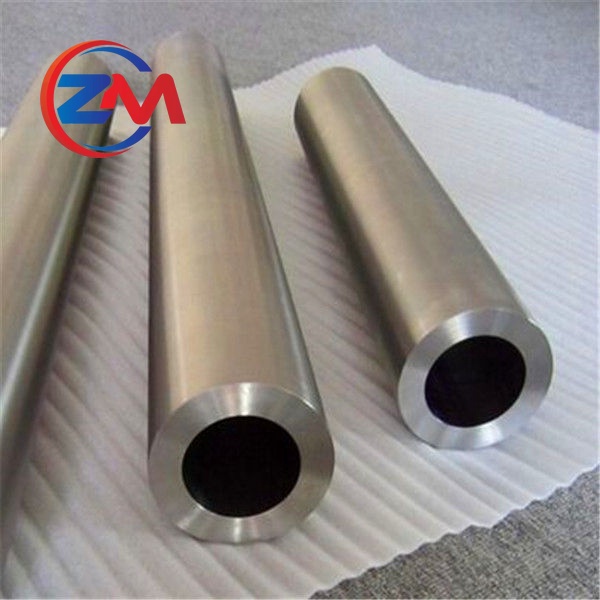

Gr2 Titanium Pipe/Tube

›

‹

  • Gr2 Titanium Pipe/Tube
  • Gr2 Titanium Pipe/Tube
  • Gr2 Titanium Pipe/Tube
  • Gr2 Titanium Pipe/Tube
  • Gr2 Titanium Pipe/Tube
  • Gr2 Titanium Pipe/Tube

›

Gr2 Titanium Pipe/Tube
  • Certificates：ISO9001 & SGS
  • MOQ：Any MOQ
  • Payment Terms：T/T Or Negotiate
  • Delivery Time: 3-5 working days but depends on quantity
  • Samples：Samples can be provided but customers need to bear the freight cost
Phone ：+86-15852528888
WhatsApp ：8615852528888
Email ：sales@zmsteels.com
Contact Us

PRODUCT PARAMETERS

NameTitanium Pipe/Tube
StandardGB/T3625,ASTM B338,ASTM B862 ASME SB338
CertificationIOS9001:2015,ISO/TS 16949:2009
Outer diameter6mm - 89mmLength ≤25000mm According to your requirements or coild tube
Wall thickness0.3-3mm
MaterialGr1(TA1),Gr2(TA2),Gr12(TA10)
Delivery timeWithin 25 days after receiving deposit
Payment termT/T,L/C
Supply ability250 tons per month
PackingExport standard package with polywood case or ISPM 15 stamped wooden case
InformationBeside the normal executive syandard.we could alse make the tubes according to your own requirements,such as wall thickness tolerance,hardness,surface requirements and etc.by different technical requirements and production technology,try our best to satisfied your.
GRADESPECIFICATIONS
CP-GRADES 2,3,4AMS-4941, 4942, BMS-7-21, DMS-1872, 1874, 1898
3AL-2.5VAMS-4943, 4944, 4945, DMS-2241, B50TF35, PWA-1260
TitaniumComposition Requirements, weight percent
GradeCONHFeAlVPdNiMo
1≤0.08≤0.18≤0.03≤0.015≤0.20-----
2≤0.08≤0.25≤0.03≤0.015≤0.30-----
3≤0.08≤0.35≤0.05≤0.015≤0.30-----
4≤0.08≤0.40≤0.05≤0.015≤0.50-----
5≤0.08≤0.20≤0.05≤0.015≤0.405.5~6.753.5~4.5---
7≤0.08≤0.25≤0.03≤0.015≤0.30--0.12~0.25--
9≤0.08≤0.15≤0.03≤0.015≤0.252.5~3.52.0~3.0---
11≤0.08≤0.18≤0.03≤0.015≤0.20--0.12~0.25--
12≤0.08≤0.25≤0.03≤0.015≤0.30---0.6~0.90.2~0.4
16≤0.08≤0.25≤0.03≤0.015≤0.30--0.04~0.08--
17≤0.08≤0.18≤0.03≤0.015≤0.20--0.04~0.08--
23≤0.08≤0.13≤0.03≤0.0125≤0.255.5-6.53.5~4.5---
Tensile StrengthYield StrengthElongationBend Test(Radius of Mandrel)
Gradeksi [MPa]0.2% offset, ksi [MPa]in 2", %t<1.8 mm1.8 mm≤t<4.75 mm
1≤35 [240]20~45 [138~310]241.5T2T
2≤50 [345]40~65 [275~450]202T2.5T
3≤65 [450]55~80 [380~550]182T2.5T
4≤80 [550]70~95 [483~655]152.5T3T
5≤130 [895]≤120 [828]104.5T5T
7≤50 [345]40~65 [275~450]202T2.5T
9≤90 [620]≤70 [483]152.5T3T
11≤35 [240]20~45 [138~310]241.5T2T
12≤70 [483]≤50 [345]182T2.5T
16≤50 [345]40~65 [275~450]202T2.5T
17≤ 35[240]20~45 [138~310]241.5T2T
23≤120 [828]≤110 [759]104.5T5T
